Ceratizit

5097103408

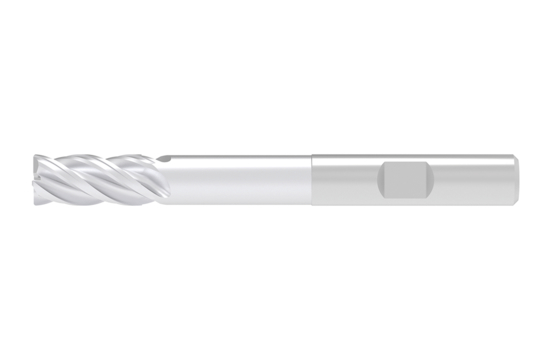

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)0.26
Helix Angle35_38 degrees
MaterialVHM
Cutting Diameter (Inch)0.12
Corner Radius (Inch)0.04
Overall Length (Inch)2.29
Cutting Diameter (Metric)3
Overall Length (Metric)58
Coating/FinishDPB72S
Corner Radius (Metric)1
Unit Of MeasureImperial
Corner Radius0.04 Inch
Neck Diameter0.11 Inch
Overall Length 2 (Inch)2.56
Cutting DirectionRight
Neck Diameter (Metric)2.8
Connection Diameter (Decimal)0.24
Connection Diameter (Metric)6
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceF8
Head Length (Decimal)0.6
Head Length (Metric)15
Length (Decimal)2.56
Width (Decimal)0.51
Height (Decimal)0.51
Length TypeExtra Long
Protruding Length (Decimal)0.87
Protruding Length (Metric)22
Shank Length (Decimal)1.42
Shank Length (Metric)36
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle35_38 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)6.5
Peripheral Effective Cutting Edge Count4
Rake Angle Axial9 degrees
Base Item Number#5097103408
Maximum Depth Of Cut (Metric)6.5
Neck Diameter (Inch)0.11
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)6.5
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)2.283
Connection diameter machine side (mm)6
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.048
Item Height (Inches)0.51
Cutting Diameter (mm)3.00 mm
Item Length (Inches)2.56
Head Length (Inch)0.591
Shank Length (mm)36
