Ceratizit
50984031

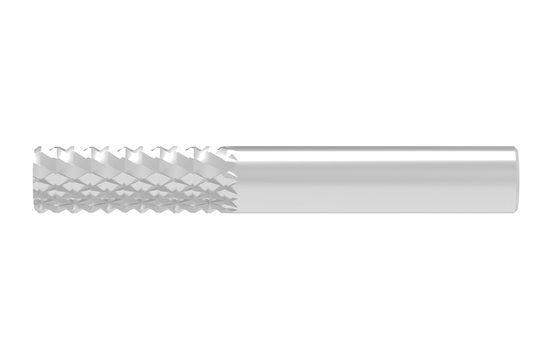

SOLID CARBIDE PLASTIC CUTTER
Specifications
| Overall Length (Inch) | 1.97 |
|---|---|
| Diameter (Metric) | 3 |
| Diameter (Inch) | 0.12 |
| Length Of Cut (Metric) | 12 |
| Material | K10F |
| Overall Length (Metric) | 50 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 35.9 |
| Max. Cutting Depth (Decimal) | 0.48 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | H10 |
| Length Type | Short |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.56 |
| Protruding Length (Metric) | 14 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #50984031 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
