Ceratizit
5099110400

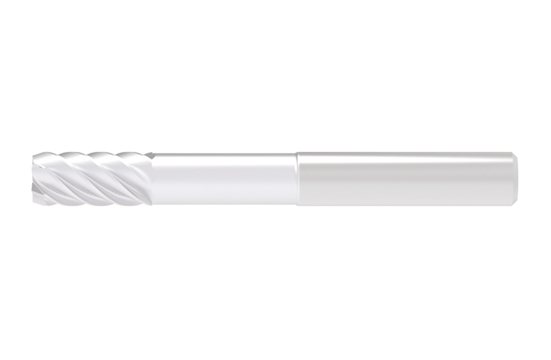

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.51 |
|---|---|
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.4 |
| Length Of Cut (Inch) | 0.83 |
| Material | VHM |
| Overall Length (Metric) | 89 |
| Coating/Finish | DPB72S |
| Overall Length 2 (Inch) | 4.49 |
| Cutting Direction | Right |
| Helix Angle | 48 - 50 degrees |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Max. Cutting Depth (Metric) | 21 |
| Neck Diameter (Decimal) | 0.39 |
| Neck Diameter (Metric) | 9.7 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.78 |
| Head Length (Metric) | 45 |
| Length Type | Extra Long |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 4.49 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.93 |
| Protruding Length (Metric) | 49 |
| Peripheral Effective Cutting Edge Count | 6 |
| Rake Angle Axial | 13 degrees |
| Base Item Number | #5099110400 |
| Flute Helix Angle | 48_50 |
| Neck Diameter (Inch) | 0.39 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
