Ceratizit
51004220

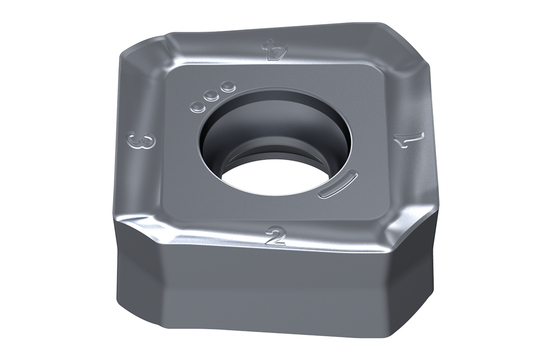

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Corner Radius (Inch) | 0.031 |
| Inscribed Circle Diameter (Metric) | 17.00 |
| ISO Code | SAKU 1706ABSR |
| Wiper Edge Length (Metric) | 3.7 |
| Cutting Edge Effective Length (Metric) | 11.85 |
| Clearance Angle Major | 3.0 |
| Included Angle | 90 |
| Cutting Edge Length (Metric) | 11.85 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 6.35 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 5.8 |
| Item Width (Inches) | 2.2 |
| Base Material | VHM |
| Item Weight (lbs) | 0.476 |
| Item Height (Inches) | 0.55 |
| Designation | 1706ABSR |
| Inscribed Circle (Metric) | 17 |
| Item Length (Inches) | 5.43 |
| Insert Included Angle | 90.0 |
| insert interface code | SA1706AB3R |
