Ceratizit
51017110

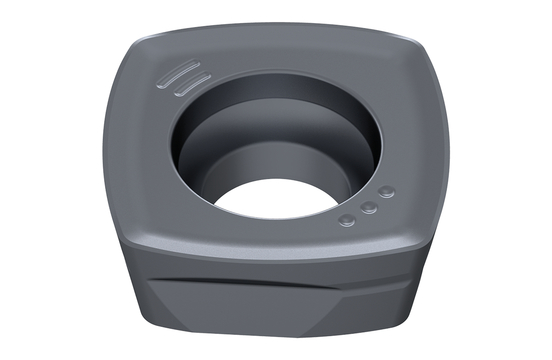

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 1 |
|---|---|
| Corner Radius (Inch) | 0.039 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| ISO Code | XOLX 120410SR |
| Wiper Edge Length (Metric) | 1.3 |
| Wiper Edge Radius (Metric) | 16.00 |
| Cutting Edge Effective Length (Metric) | 12 |
| Clearance Angle Major | 10.0 |
| Cutting Edge Length (Metric) | 12.00 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 5.5 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.163 |
| Item Height (Inches) | 0.51 |
| Designation | 120410SR |
| Inscribed Circle (Metric) | 12.7 |
| Item Length (Inches) | 3.86 |
| insert interface code | XO1204103R |
