Ceratizit
51034412

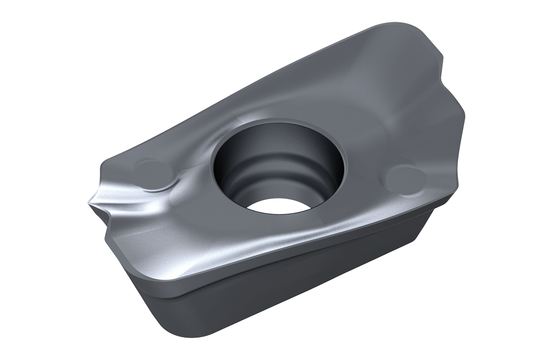

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 1.2 |
|---|---|
| Corner Radius (Inch) | 0.047 |
| Inscribed Circle Diameter (Metric) | 6.8 |
| ISO Code | XDKT 11T312SR |
| Wiper Edge Length (Metric) | 1.4 |
| Cutting Edge Effective Length (Metric) | 10.6 |
| Clearance Angle Major | 15.0 |
| Cutting Edge Length (Metric) | 10.6 |
| Insert Length (Metric) | 12.905 |
| Insert Length (Inch) | 0.508 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.8 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 2.8 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.082 |
| Item Height (Inches) | 0.51 |
| Designation | 11T312SR |
| Inscribed Circle (Metric) | 6.8 |
| Item Length (Inches) | 3.86 |
| insert interface code | XD11T3123R |
