Ceratizit
51101370

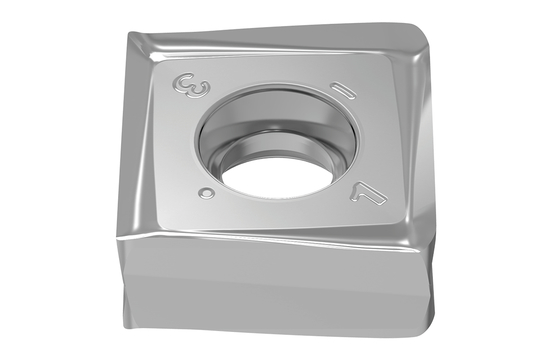

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 2 |
|---|---|
| Corner Radius (Inch) | 0.079 |
| Inscribed Circle Diameter (Metric) | 12.2 |
| ISO Code | SNHU 120420FR |
| Cutting Edge Effective Length (Metric) | 12.2 |
| Clearance Angle Major | 6.5 |
| Included Angle | 90 |
| Cutting Edge Length (Metric) | 12.2 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 5 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 4.4 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.195 |
| Item Height (Inches) | 0.51 |
| Designation | 120420FR |
| Inscribed Circle (Metric) | 12.2 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 90.0 |
| insert interface code | SN1204203R |
