Ceratizit
5110992001

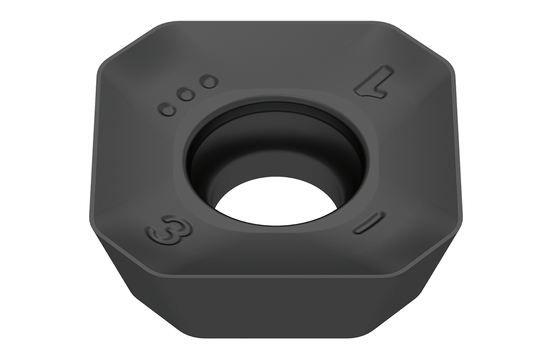

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 1 |
|---|---|
| Corner Radius (Inch) | 0.039 |
| Inscribed Circle Diameter (Metric) | 9.52 |
| ISO Code | SDHT 0903AESN |
| Wiper Edge Length (Metric) | 1.68 |
| Cutting Edge Effective Length (Metric) | 9.52 |
| Clearance Angle Major | 15.0 |
| Included Angle | 90 |
| Cutting Edge Length (Metric) | 9.52 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.18 |
| Insert Hand | NEUTRAL |
| Screw Hole Diameter (Metric) | 3.4 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.080 |
| Item Height (Inches) | 0.51 |
| Designation | 0903AESN |
| Inscribed Circle (Metric) | 9.52 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 90.0 |
| insert interface code | SD0903AE3N |
