Ceratizit
5112796001

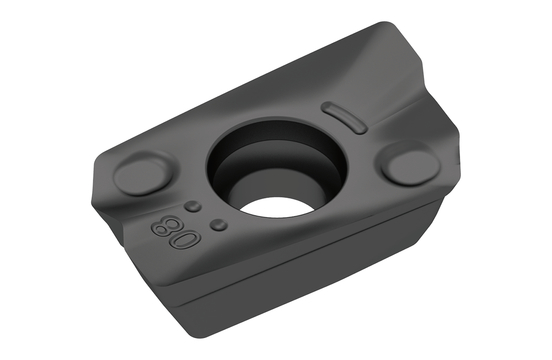

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 6 |
|---|---|
| Corner Radius (Inch) | 0.236 |
| Inscribed Circle Diameter (Metric) | 12.5 |
| ISO Code | XDKT 200760ER |
| Cutting Edge Effective Length (Metric) | 18.8 |
| Clearance Angle Major | 15.0 |
| Cutting Edge Length (Metric) | 18.8 |
| Insert Length (Metric) | 22.09 |
| Insert Length (Inch) | 0.870 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 6.8 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 5.5 |
| Item Width (Inches) | 2.2 |
| Base Material | VHM |
| Item Weight (lbs) | 0.337 |
| Item Height (Inches) | 0.55 |
| Designation | 200760ER |
| Inscribed Circle (Metric) | 12.5 |
| Item Length (Inches) | 5.43 |
| insert interface code | XD2007603R |
