Ceratizit
5113802000

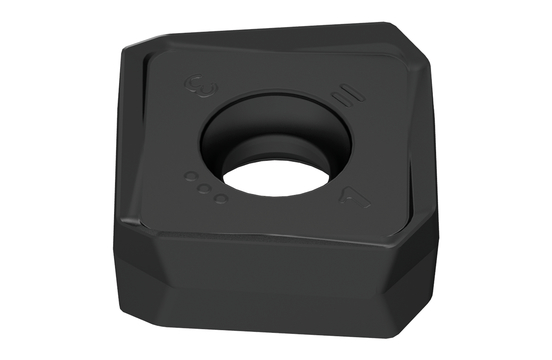

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 0.8 |
|---|---|
| Corner Radius (Inch) | 0.031 |
| Inscribed Circle Diameter (Metric) | 13.36 |
| ISO Code | SOHU 1204ABSR |
| Wiper Edge Length (Metric) | 1.7 |
| Cutting Edge Effective Length (Metric) | 8.8 |
| Clearance Angle Major | 7.4 |
| Included Angle | 90 |
| Cutting Edge Length (Metric) | 8.8 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 5 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 4.4 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.227 |
| Item Height (Inches) | 0.51 |
| Designation | 1204ABSR |
| Inscribed Circle (Metric) | 13.36 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 90.0 |
| insert interface code | SO1204AB3R |
