Ceratizit
5116002502

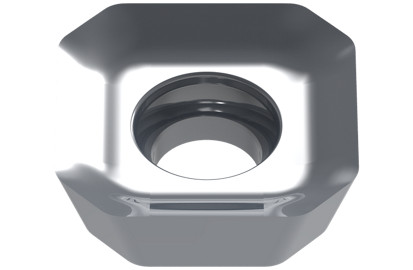

CARBIDE MILLING INSERT
Specifications
| Corner Radius (Metric) | 0.2 |
|---|---|
| Corner Radius (Inch) | 0.008 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| ISO Code | SDHT 1204AEFN |
| Wiper Edge Length (Metric) | 1.74 |
| Cutting Edge Effective Length (Metric) | 12.7 |
| Clearance Angle Major | 15.0 |
| Included Angle | 90 |
| Cutting Edge Length (Metric) | 12.7 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | NEUTRAL |
| Screw Hole Diameter (Metric) | 5.5 |
| Item Width (Inches) | 1.57 |
| Base Material | VHM |
| Item Weight (lbs) | 0.150 |
| Item Height (Inches) | 0.51 |
| Designation | 1204AEFN |
| Inscribed Circle (Metric) | 12.7 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 90.0 |
| insert interface code | SD1204AE3N |
