Ceratizit
5201110000

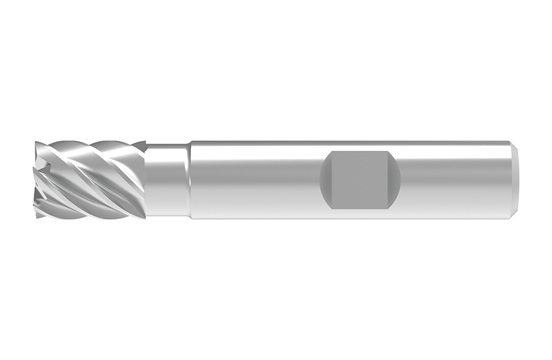

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.37 |
|---|---|
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.4 |
| Length Of Cut (Inch) | 0.56 |
| Material | VHM |
| Overall Length (Metric) | 60 |
| Coating/Finish | BLANK |
| Overall Length 2 (Inch) | 2.8 |
| Cutting Direction | Right |
| Helix Angle | 48 - 50 degrees |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Max. Cutting Depth (Metric) | 14 |
| Neck Diameter (Decimal) | 0.39 |
| Neck Diameter (Metric) | 9.8 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.75 |
| Head Length (Metric) | 19 |
| Length Type | Short |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 2.8 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 0.79 |
| Protruding Length (Metric) | 20 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.05 |
| Peripheral Effective Cutting Edge Count | 6 |
| Rake Angle Axial | 13 degrees |
| Base Item Number | #5201110000 |
| Flute Helix Angle | 48_50 |
| Neck Diameter (Inch) | 0.39 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
