Ceratizit

5205112000

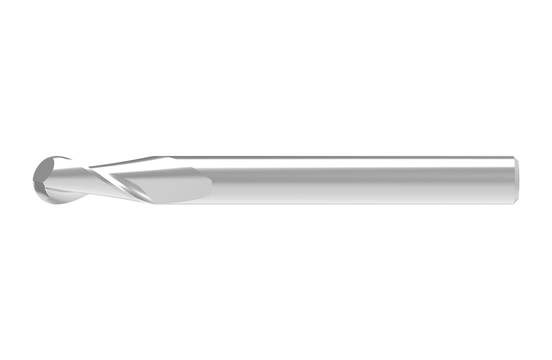

SOLID CARBIDE BALL NOSED MILLING CUTTER

Specifications

Coating/FinishBlank
Diameter (Metric)12
Overall Length (Inch)3.94
Length Of Cut (Inch)1.03
Overall Length (Metric)100
Cutting DirectionRight
MaterialVHM
Length Of Cut (Metric)26
Diameter (Inch)0.48
Unit Of MeasureImperial
Connection Diameter (Decimal)0.48
Connection Diameter (Metric)12
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Diameter ToleranceF8
Length TypeExtra Long
Height (Decimal)0.71
Length (Decimal)4.49
Width (Decimal)0.71
Protruding Length (Decimal)2.17
Protruding Length (Metric)55
Shank Length (Metric)45
Shank Length (Decimal)1.78
Flute Helix Angle30 degrees
Overall Length 2 (Decimal)4.49
Flute Helix HandLeft
Peripheral Effective Cutting Edge Count2
Rake Angle Axial14 degrees
Base Item Number#5205112000
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)26
Shank Length (Inch)1.772
Connection diameter machine side (inch)0.472
Item Width (Inches)0.71
Connection type machine sideCYL
Connection diameter machine side (mm)12
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.319
Item Height (Inches)0.71
Cutting Diameter (mm)1.20 cm
Item Length (Inches)4.49
Shank Length (mm)45
Cutting Diameter Tolerancef8
Cutting Diameter (Inch)0.472
