Ceratizit
5205702500

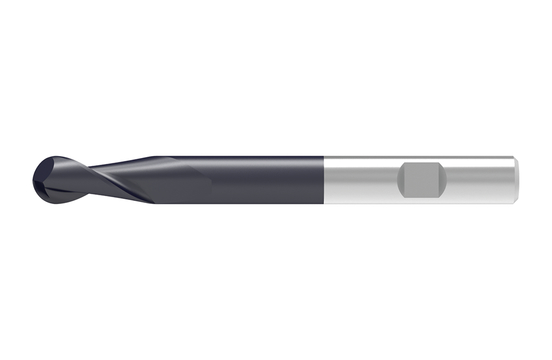

SOLID CARBIDE BALL NOSED MILLING CUTTER
Specifications
| Coating/Finish | DPX72S |
|---|---|
| Diameter (Metric) | 2.5 |
| Overall Length (Inch) | 3.15 |
| Length Of Cut (Inch) | 0.32 |
| Overall Length (Metric) | 80 |
| Cutting Direction | Right |
| Material | VHM |
| Length Of Cut (Metric) | 8 |
| Diameter (Inch) | 0.1 |
| Unit Of Measure | Imperial |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | F8 |
| Length Type | Extra Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 3.23 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Shank Length (Metric) | 36 |
| Shank Length (Decimal) | 1.42 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 3.23 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 14 degrees |
| Base Item Number | #5205702500 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 8 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.073 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 2.50 mm |
| Item Length (Inches) | 3.23 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | f8 |
| Cutting Diameter (Inch) | 0.098 |
