Ceratizit
52107178

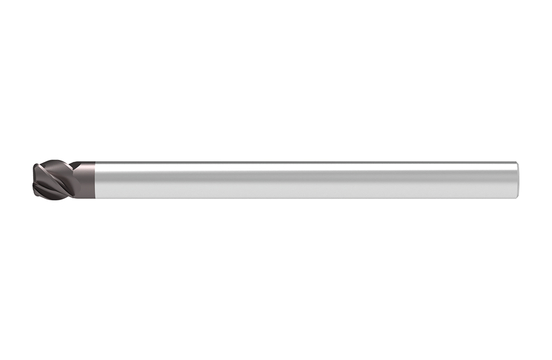

SOLID CARBIDE TORUS MILLING CUTTER
Specifications
| Overall Length (Inch) | 7.087 |
|---|---|
| Corner Radius (Inch) | 0.079 |
| Corner Radius (Metric) | 2 |
| Short Description | H.TO.17,0.45°.Z4.R2,0.HA.EL TI1000 |
| Long Description | SOLID CARBIDE TORUS MILLING CUTTER H.TO.17,0.45°.Z4.R2,0.HA.EL TI1000 |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 24 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 0.63 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 45 |
| Item Width (Inches) | 0.98 |
| Connection type machine side | CYL |
| Overall Length (mm) | 18 cm |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 1.159 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.98 |
| Protruding Length (Metric) | 132 |
| Cutting Diameter (mm) | 1.70 cm |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 12 |
| Item Length (Inches) | 7.48 |
| Coating | TI1000 |
| Shank Length (mm) | 48 |
| Cutting Diameter Tolerance | e8 |
| Cutting Diameter (Inch) | 0.669 |
| Corner Radius Tolerance (Metric) | ±0.01 |
