Ceratizit
5.210916E7

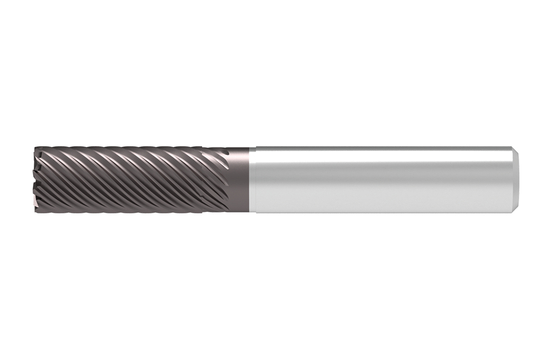

SOLID CARBIDE FINE TOOTH END MILL
Specifications
| Length Of Cut (Metric) | 35.0 |
|---|---|
| Overall Length (Inch) | 3.67 |
| Overall Length (Metric) | 93.0 |
| Material | VHM |
| Coating/Finish | TI1000 |
| Diameter (Metric) | 16.0 |
| Cutting Direction | Right |
| Diameter (Inch) | 0.63 |
| Unit Of Measure | Metric |
| Overall Length 2 (Inch) | 4.06 |
| Helix Angle | 50 degrees |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16.0 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | E8 |
| Head Length (Decimal) | 1.7 |
| Head Length (Metric) | 43.0 |
| Length Type | Long |
| Length (Decimal) | 4.06 |
| Width (Decimal) | 0.98 |
| Height (Decimal) | 0.98 |
| Neck Diameter (Metric) | 15.8 |
| Protruding Length (Decimal) | 1.78 |
| Protruding Length (Metric) | 45.0 |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48.0 |
| Depth of Cut Maximum (Decimal) | 1.38 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 16.0 |
| Flute Helix Angle | 50 degrees |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #52109160 |
| Neck Diameter (Inch) | 0.63 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
