Ceratizit
52136060

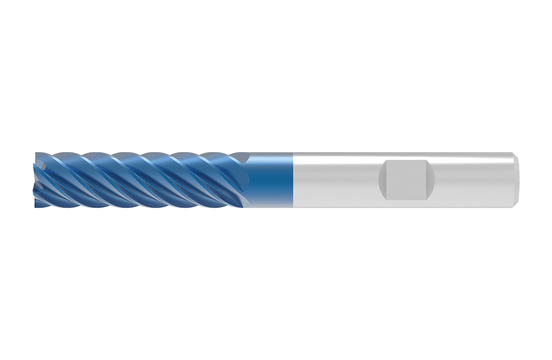

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.56 |
|---|---|
| Diameter (Metric) | 6 |
| Diameter (Inch) | 0.24 |
| Length Of Cut (Metric) | 21 |
| Material | VHM |
| Overall Length (Metric) | 65 |
| Coating/Finish | TI2000 |
| Overall Length 2 (Inch) | 3.23 |
| Cutting Direction | Right |
| Helix Angle | 45 - 30 degrees |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Max. Cutting Depth (Decimal) | 0.83 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Length Type | Extra Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 3.23 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 1.15 |
| Protruding Length (Metric) | 29 |
| Peripheral Effective Cutting Edge Count | 6 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #52136060 |
| Flute Helix Angle | 45_30 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
