Ceratizit

52140044

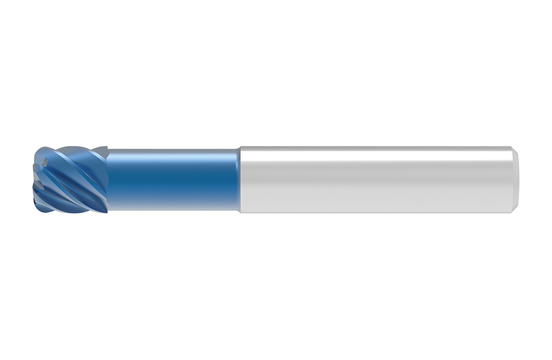

CARBIDE END MILL WITH CORNER RADIUS

Specifications

Helix Angle45_30 degrees
MaterialVHM
Cutting Diameter (Inch)0.16
Corner Radius (Inch)0.04
Overall Length (Inch)1.97
Cutting Diameter (Metric)4
Length Of Cut (Metric)5
Overall Length (Metric)50
Coating/FinishTI2000
Corner Radius (Metric)1
Unit Of MeasureMetric
Corner Radius1 mm
Neck Diameter3.70 mm
Overall Length 2 (Inch)2.56
Cutting DirectionRight
Neck Diameter (Decimal)0.15
Neck Diameter (Metric)3.7
Connection Diameter (Decimal)0.16
Connection Diameter (Metric)4
Connection Diameter ToleranceH6
Connection TypeCYL
Cutting Diameter ToleranceE8
Head Length (Decimal)0.63
Head Length (Metric)16
Length (Decimal)2.56
Width (Decimal)0.51
Height (Decimal)0.51
Length TypeLong
Protruding Length (Decimal)0.87
Protruding Length (Metric)22
Shank Length (Decimal)1.11
Shank Length (Metric)28
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle45_30 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)0.2
Peripheral Effective Cutting Edge Count4
Rake Angle Axial10 degrees
Base Item Number#52140044
Maximum Depth Of Cut (Inch)0.2
Neck Diameter (Inch)0.15
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)5
Shank Length (Inch)1.102
Connection diameter machine side (inch)0.157
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)1.969
Connection diameter machine side (mm)4
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.034
Item Height (Inches)0.51
Cutting Diameter (mm)4.00 mm
Item Length (Inches)2.56
Head Length (Inch)0.63
Shank Length (mm)28
