Ceratizit
52152060

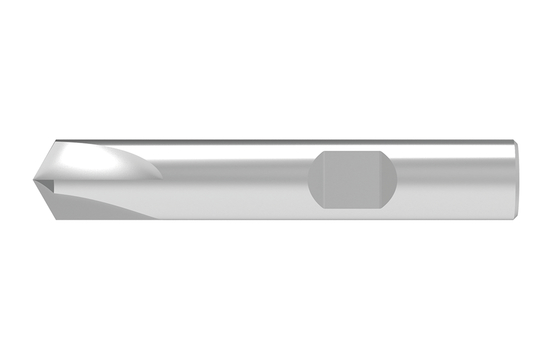

SOLID CARBIDE NC DEBURRING CUTTER
Specifications
| Shank Length (Inch) | 1.417 |
|---|---|
| Long Description | SOLID CARBIDE NC DEBURRING CUTTER N.EF.6,0.120°.Z4.HB |
| Short Description | N.EF.6,0.120°.Z4.HB |
| Product Line | WNT PERFORMANCE |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.126 |
| Overall Length (mm) | 5.4 cm |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | H6 |
| Base Material | K10F |
| Item Weight (lbs) | 0.055 |
| Item Height (Inches) | 0.51 |
| Peripheral Effective Cutting Edge Count | 4 |
| Item Length (Inches) | 2.56 |
| Profile Angle | 120 |
| Shank Length (mm) | 36 |
| Cutting Diameter Tolerance | h6 |
