Ceratizit
52158060

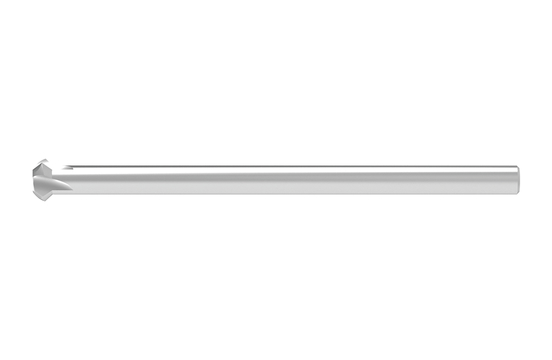

SOLID CARBIDE NC DEBURRING CUTTER
Specifications
| Head Length (Inch) | 0.748 |
|---|---|
| Head Length (Metric) | 19 |
| Shank Length (Inch) | 1.417 |
| Long Description | SOLID CARBIDE NC DEBURRING CUTTER N.EF.6,0.0°.Z4.HA |
| Short Description | N.EF.6,0.0°.Z4.HA |
| Product Line | WNT STANDARD |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.937 |
| Overall Length (mm) | 10 cm |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | K10F |
| Item Weight (lbs) | 0.092 |
| Item Height (Inches) | 0.51 |
| Peripheral Effective Cutting Edge Count | 4 |
| Item Length (Inches) | 4.33 |
| Profile Angle | 90 |
| Shank Length (mm) | 36 |
| Neck Diameter (Inch) | 0.154 |
