Ceratizit
52159120

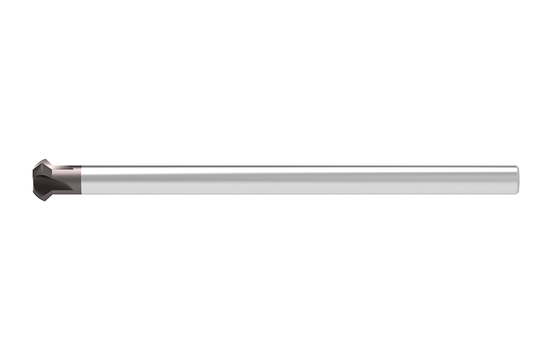

SOLID CARBIDE NC DEBURRING CUTTER
Specifications
| Shank Length (Inch) | 1.417 |
|---|---|
| Long Description | SOLID CARBIDE NC DEBURRING CUTTER N.EF.12,0.0°.Z4.HA TI1000 |
| Short Description | N.EF.12,0.0°.Z4.HA TI1000 |
| Product Line | WNT STANDARD |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.937 |
| Overall Length (mm) | 10 cm |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.119 |
| Item Height (Inches) | 0.71 |
| Peripheral Effective Cutting Edge Count | 4 |
| Item Length (Inches) | 4.49 |
| Profile Angle | 90 |
| Shank Length (mm) | 36 |
