Ceratizit
52195030

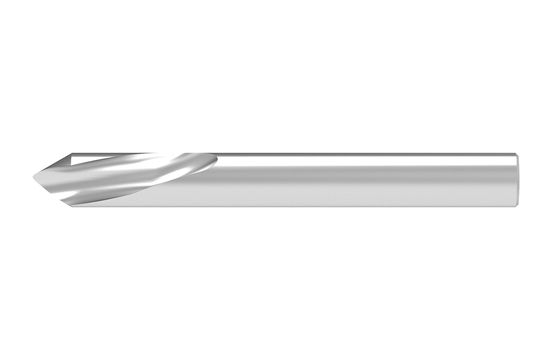

SOLID CARBIDE ENGRAVING CUTTER
Specifications
| Overall Length (Inch) | 1.969 |
|---|---|
| Coating | BLANK |
| Flute Helix Angle | 15 |
| Long Description | SOLID CARBIDE ENGRAVING CUTTER W.GF.3,0.15°/60°.Z1.HA |
| Peripheral Effective Cutting Edge Count | 1 |
| Rake Angle Axial | 20 |
| Short Description | W.GF.3,0.15°/60°.Z1.HA |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 15 |
| Shank Length (Inch) | 1.102 |
| Connection diameter machine side (inch) | 0.118 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (mm) | 5 cm |
| Connection diameter machine side (mm) | 3 |
| Connection diameter machine side tolerance | H6 |
| Base Material | K10F |
| Item Weight (lbs) | 0.021 |
| Item Height (Inches) | 0.51 |
| Protruding Length (Metric) | 22 |
| Cutting Diameter (mm) | 3.00 mm |
| Item Length (Inches) | 2.56 |
| Profile Angle | 60 |
| Shank Length (mm) | 28 |
| Cutting Diameter Tolerance | h6 |
| Cutting Diameter (Inch) | 0.118 |
