Ceratizit

5220512200

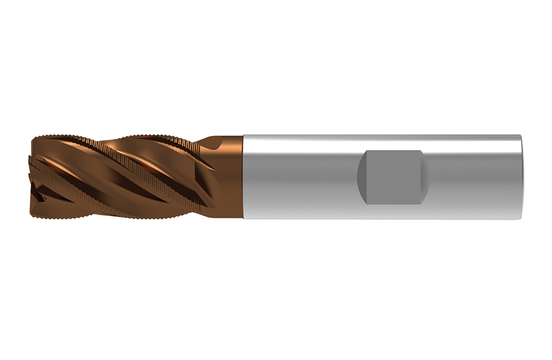

HPC SOLID CARBIDE ROUGH MILLING CUTTER

Specifications

Overall Length (Inch)2.83
Diameter (Metric)12
Diameter (Inch)0.48
Length Of Cut (Inch)1.03
MaterialVHM
Overall Length (Metric)83
Coating/FinishAPX72S
Overall Length 2 (Inch)3.27
Cutting DirectionRight
Helix Angle28 - 36 degrees
Shank Length (Decimal)1.78
Shank Length (Metric)45
Max. Cutting Depth (Metric)26
Neck Diameter (Decimal)0.46
Neck Diameter (Metric)11.5
Connection Diameter (Decimal)0.48
Connection Diameter (Metric)12
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceH11
Flute Helix HandLeft
Head Length (Decimal)1.38
Head Length (Metric)35
Length TypeLong
Height (Decimal)0.71
Length (Decimal)2.83
Width (Decimal)0.71
Protruding Length (Decimal)1.5
Protruding Length (Metric)380
Corner Chamfer Width (Decimal)0.02
Corner Chamfer Width (Metric)0.45
Peripheral Effective Cutting Edge Count4
Rake Angle Axial10 degrees
Base Item Number#5220512200
Flute Helix Angle28_36
Neck Diameter (Inch)0.46
Product TypeIndustrial Supplies
Unit of MeasureImperial
Unit Of MeasureImperial
