Ceratizit

52224140

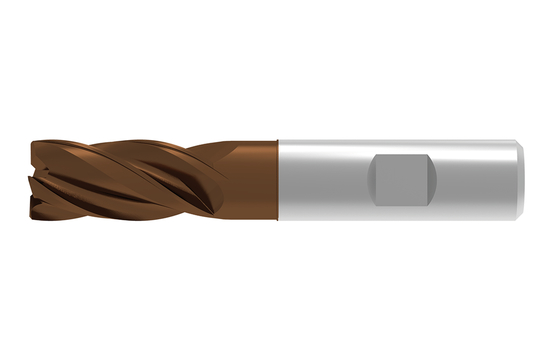

HPC CARBIDE END MILL WITH EDGE BREAK

Specifications

Helix Angle28_36
MaterialVHM
Cutting Diameter (Inch)0.56
Overall Length (Inch)3.27
Cutting Diameter (Metric)14
Length Of Cut (Metric)26
Overall Length (Metric)83
Coating/FinishAPX72S
Unit Of MeasureMetric
Neck Diameter13.50 mm
Overall Length 2 (Inch)3.62
Cutting DirectionRight
Neck Diameter (Decimal)0.54
Neck Diameter (Metric)13.5
Connection Diameter (Decimal)0.56
Connection Diameter (Metric)14
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceF8
Head Length (Decimal)1.5
Head Length (Metric)38
Length (Decimal)3.62
Width (Decimal)0.98
Height (Decimal)0.98
Length TypeLong
Protruding Length (Decimal)1.5
Protruding Length (Metric)380
Shank Length (Decimal)1.78
Shank Length (Metric)45
Flute Helix Angle28_36 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)1.03
Peripheral Effective Cutting Edge Count4
Rake Angle Axial10 degrees
Chamfer Width0.30 mm
Corner Chamfer Width (Decimal)0.02
Corner Chamfer Width (Metric)0.3
Base Item Number#52224140
Maximum Depth Of Cut (Inch)1.03
Neck Diameter (Inch)0.54
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)26
Shank Length (Inch)1.772
Connection diameter machine side (inch)0.551
Item Width (Inches)0.98
Connection type machine sideCYL
Overall Length (Decimal Inch)3.268
Connection diameter machine side (mm)14
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.405
Item Height (Inches)0.98
Cutting Diameter (mm)1.40 cm
Item Length (Inches)3.62
Head Length (Inch)1.496
Shank Length (mm)45
