Ceratizit
5222806015

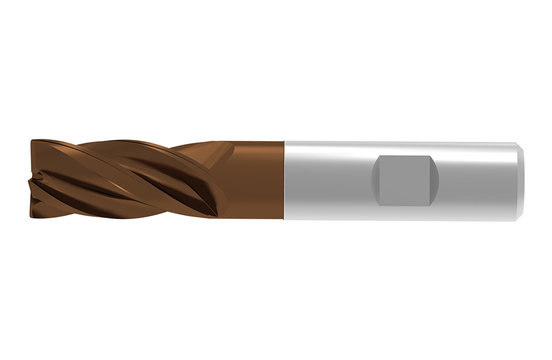

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 0.52 |
|---|---|
| Helix Angle | 28_36 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.24 |
| Corner Radius (Inch) | 0.06 |
| Overall Length (Inch) | 2.25 |
| Cutting Diameter (Metric) | 6 |
| Overall Length (Metric) | 57 |
| Coating/Finish | APX72S |
| Corner Radius (Metric) | 2 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.06 Inch |
| Neck Diameter | 0.22 Inch |
| Overall Length 2 (Inch) | 2.48 |
| Cutting Direction | Right |
| Neck Diameter (Metric) | 5.5 |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Head Length (Decimal) | 0.83 |
| Head Length (Metric) | 21 |
| Length (Decimal) | 2.48 |
| Width (Decimal) | 0.51 |
| Height (Decimal) | 0.51 |
| Length Type | Long |
| Protruding Length (Decimal) | 0.83 |
| Protruding Length (Metric) | 21 |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Flute Helix Angle | 28_36 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 13 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5222806015 |
| Maximum Depth Of Cut (Metric) | 13 |
| Neck Diameter (Inch) | 0.217 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 13 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.244 |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.059 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 6.00 mm |
| Item Length (Inches) | 2.48 |
| Head Length (Inch) | 0.827 |
| Shank Length (mm) | 36 |
