IBC Member Market

Ceratizit

5223220030

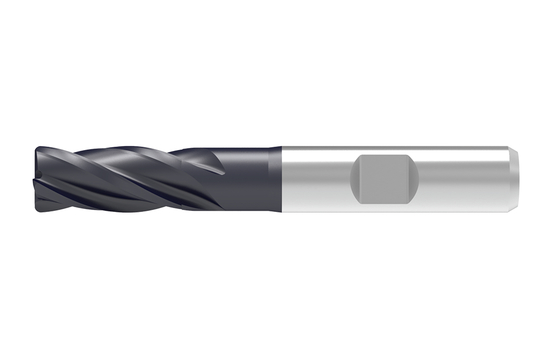

CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)1.5
Helix Angle30 degrees
MaterialVHM
Cutting Diameter (Inch)0.79
Corner Radius (Inch)0.12
Overall Length (Inch)4.1
Cutting Diameter (Metric)20
Overall Length (Metric)104
Coating/FinishDPX72S
Corner Radius (Metric)3
Unit Of MeasureImperial
Corner Radius0.12 Inch
Neck Diameter0.78 Inch
Overall Length 2 (Inch)4.45
Cutting DirectionRight
Neck Diameter (Metric)19.8
Connection Diameter (Decimal)0.79
Connection Diameter (Metric)20
Connection Diameter ToleranceH6
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceE8
Head Length (Decimal)2.05
Head Length (Metric)52
Length (Decimal)4.45
Width (Decimal)1.1
Height (Decimal)1.1
Length TypeLong
Protruding Length (Decimal)2.13
Protruding Length (Metric)54
Shank Length (Decimal)1.97
Shank Length (Metric)50
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle30 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)38
Peripheral Effective Cutting Edge Count4
Rake Angle Axial6 degrees
Base Item Number#5223220030
Maximum Depth Of Cut (Metric)38
Neck Diameter (Inch)0.78
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT STANDARD
Depth of Cut Maximum (Metric)38
Shank Length (Inch)1.969
Connection diameter machine side (inch)0.787
Item Width (Inches)1.1
Connection type machine sideCYL
Overall Length (Decimal Inch)4.094
Connection diameter machine side (mm)20
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.919
Item Height (Inches)1.1
Cutting Diameter (mm)2.00 cm
Item Length (Inches)4.45
Head Length (Inch)2.047
Shank Length (mm)50
