Ceratizit
52249012

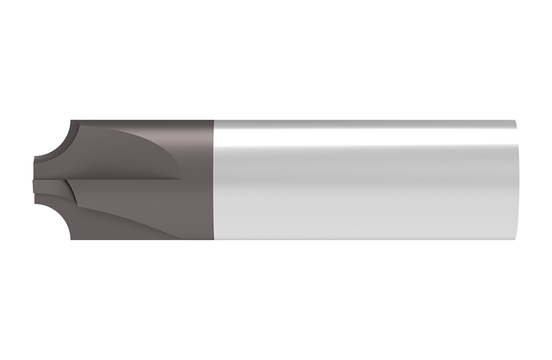

SOLID CARBIDE QUARTER ROUND CUTTER
Specifications
| Overall Length (Inch) | 2.953 |
|---|---|
| Long Description | SOLID CARBIDE QUARTER ROUND CUTTER N.VR.1,25.0°.Z4.HA TI1000 |
| Short Description | N.VR.1,25.0°.Z4.HA TI1000 |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 1.25 |
| Shank Length (Inch) | 1.575 |
| Connection diameter machine side (inch) | 0.394 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (mm) | 7.5 cm |
| Connection diameter machine side (mm) | 10 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.198 |
| Item Height (Inches) | 0.71 |
| Protruding Length (Metric) | 35 |
| Cutting Diameter (mm) | 7.50 mm |
| Peripheral Effective Cutting Edge Count | 4 |
| Item Length (Inches) | 3.5 |
| Coating | TI1000 |
| Shank Length (mm) | 40 |
| Profile Radius (Metric) | 1.25 |
| Cutting Diameter (Inch) | 0.295 |
