Ceratizit
52249050

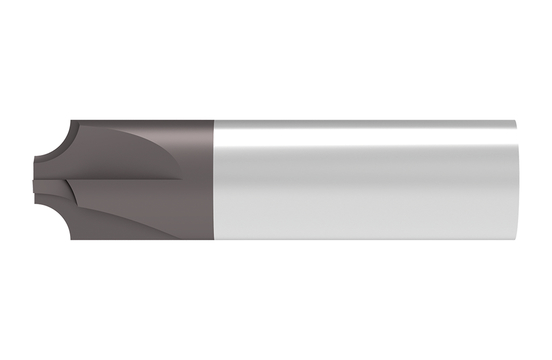

SOLID CARBIDE QUARTER ROUND CUTTER
Specifications
| Overall Length (Inch) | 3.15 |
|---|---|
| Long Description | SOLID CARBIDE QUARTER ROUND CUTTER N.VR.5,0.0°.Z4.HA TI1000 |
| Short Description | N.VR.5,0.0°.Z4.HA TI1000 |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 5 |
| Shank Length (Inch) | 1.969 |
| Connection diameter machine side (inch) | 0.787 |
| Flute Helix Hand | RIGHT |
| Item Width (Inches) | 1.1 |
| Connection type machine side | CYL |
| Overall Length (mm) | 8 cm |
| Connection diameter machine side (mm) | 20 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.773 |
| Item Height (Inches) | 1.1 |
| Protruding Length (Metric) | 30 |
| Cutting Diameter (mm) | 1.00 cm |
| Peripheral Effective Cutting Edge Count | 4 |
| Item Length (Inches) | 4.45 |
| Coating | TI1000 |
| Shank Length (mm) | 50 |
| Profile Radius (Metric) | 5 |
| Cutting Diameter (Inch) | 0.394 |
