Ceratizit
52320121

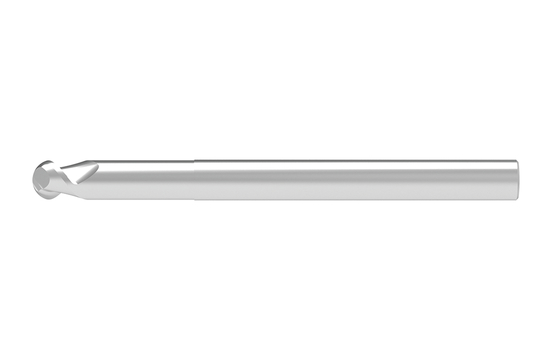

SOLID CARBIDE BALL NOSED MILLING CUTTER
Specifications
| Coating/Finish | Blank |
|---|---|
| Diameter (Metric) | 12 |
| Overall Length (Inch) | 7.88 |
| Length Of Cut (Inch) | 0.44 |
| Overall Length (Metric) | 200 |
| Cutting Direction | Right |
| Material | K10F |
| Length Of Cut (Metric) | 11 |
| Diameter (Inch) | 0.48 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Diameter Tolerance | E8 |
| Head Length (Decimal) | 1.97 |
| Head Length (Metric) | 50 |
| Length Type | Extra Long |
| Height (Decimal) | 0.79 |
| Length (Decimal) | 8.07 |
| Width (Decimal) | 0.79 |
| Neck Diameter (Decimal) | 0.46 |
| Neck Diameter (Metric) | 11.6 |
| Protruding Length (Decimal) | 5.99 |
| Protruding Length (Metric) | 152 |
| Shank Length (Metric) | 48 |
| Shank Length (Decimal) | 1.89 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 8.07 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #52320121 |
| Neck Diameter (Inch) | 0.46 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT STANDARD |
| Depth of Cut Maximum (Metric) | 11 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 0.63 |
| Item Width (Inches) | 0.79 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | H6 |
| Base Material | K10F |
| Item Weight (lbs) | 1.068 |
| Item Height (Inches) | 0.79 |
| Cutting Diameter (mm) | 1.20 cm |
| Item Length (Inches) | 8.07 |
| Head Length (Inch) | 1.969 |
| Shank Length (mm) | 48 |
| Cutting Diameter Tolerance | e8 |
| Cutting Diameter (Inch) | 0.472 |
