Ceratizit
52345409

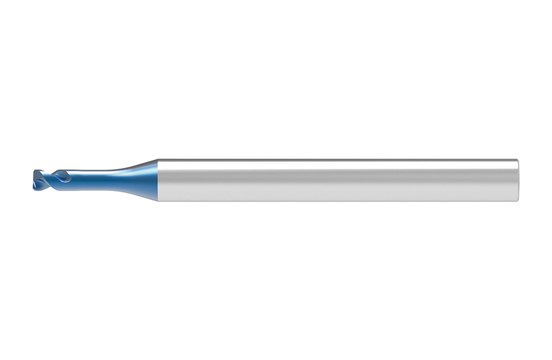

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.78 |
|---|---|
| Diameter (Metric) | 0.9 |
| Diameter (Inch) | 0.04 |
| Length Of Cut (Metric) | 1.3 |
| Overall Length (Metric) | 45 |
| Coating/Finish | TI2000 |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.11 |
| Shank Length (Metric) | 28 |
| Max. Cutting Depth (Decimal) | 0.06 |
| Neck Diameter (Decimal) | 0.04 |
| Neck Diameter (Metric) | 0.88 |
| Connection Diameter (Decimal) | 0.16 |
| Connection Diameter (Metric) | 4 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Cutting Diameter Tolerance (Decimal) | -0.01 |
| Cutting Diameter Tolerance (Metric) | -0.01 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.24 |
| Head Length (Metric) | 6 |
| Length Type | Medium |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.67 |
| Protruding Length (Metric) | 17 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #52345409 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.04 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
