Ceratizit
5234940801

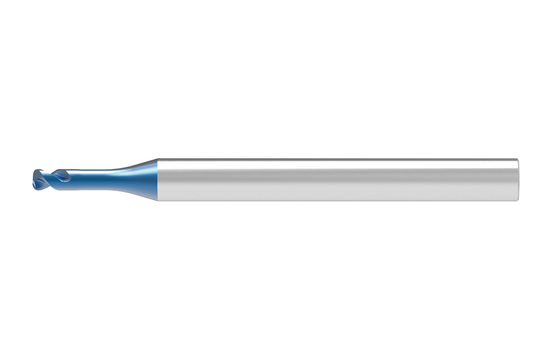

SOLID CARBIDE TORUS MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.969 |
|---|---|
| Corner Radius (Inch) | 0.004 |
| Corner Radius (Metric) | 0.1 |
| Short Description | H.TO.0,8.30°.Z2.R0,1.HA.ML0,8/6,0 TI2000 |
| Long Description | SOLID CARBIDE TORUS MILLING CUTTER H.TO.0,8.30°.Z2.R0,1.HA.ML0,8/6,0 TI2000 |
| Neck Diameter (Metric) | 0.78 |
| Neck Diameter (Inch) | 0.031 |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 0.8 |
| Shank Length (Inch) | 1.102 |
| Connection diameter machine side (inch) | 0.157 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 30 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (mm) | 5 cm |
| Connection diameter machine side (mm) | 4 |
| Connection diameter machine side tolerance | h5 |
| Item Weight (lbs) | 0.039 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | -0.012 |
| Protruding Length (Metric) | 22 |
| Cutting Diameter (mm) | 800.00 µm |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 0 |
| Item Length (Inches) | 2.56 |
| Coating | TI2000 |
| Head Length (Inch) | 0.236 |
| Shank Length (mm) | 28 |
| Head Length (Metric) | 6 |
| Cutting Diameter (Inch) | 0.031 |
| Corner Radius Tolerance (Metric) | ±0.005 |
