Ceratizit
5235333003

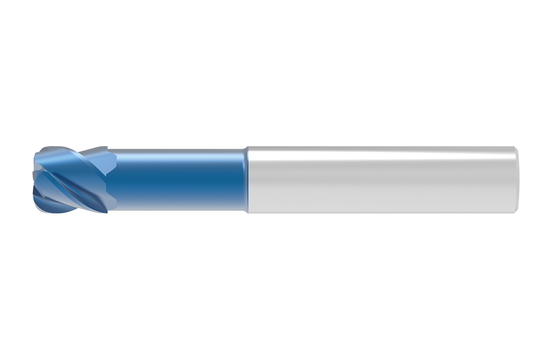

SOLID CARBIDE FINISH MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.97 |
|---|---|
| Diameter (Metric) | 3 |
| Diameter (Inch) | 0.12 |
| Length Of Cut (Inch) | 0.16 |
| Material | VHM |
| Overall Length (Metric) | 50 |
| Coating/Finish | TI2000 |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.11 |
| Shank Length (Metric) | 28 |
| Corner Radius (Decimal) | 0.02 |
| Corner Radius (Metric) | 1 |
| Max. Cutting Depth (Metric) | 4 |
| Neck Diameter (Decimal) | 0.11 |
| Neck Diameter (Metric) | 2.7 |
| Connection Diameter (Decimal) | 0.12 |
| Connection Diameter (Metric) | 3 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.56 |
| Head Length (Metric) | 14 |
| Length Type | Medium |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.87 |
| Protruding Length (Metric) | 22 |
| Corner Radius Tolerance (Decimal) | ±0.01 |
| Corner Radius Tolerance (Metric) | ±0.01 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #5235333003 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.11 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
