Ceratizit
52356902

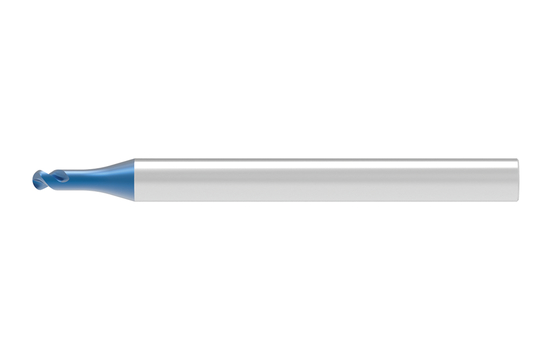

SOLID CARBIDE BALL NOSED MILLING CUTTER
Specifications
| Coating/Finish | TI2000 |
|---|---|
| Diameter (Metric) | 0.2 |
| Overall Length (Inch) | 1.78 |
| Length Of Cut (Inch) | 0.01 |
| Overall Length (Metric) | 45 |
| Cutting Direction | Right |
| Length Of Cut (Metric) | 0.16 |
| Diameter (Inch) | 0.01 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.16 |
| Connection Diameter (Metric) | 4 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Diameter Tolerance (Decimal) | -0.01 |
| Diameter Tolerance (Metric) | -0.01 |
| Head Length (Decimal) | 0.07 |
| Head Length (Metric) | 1.75 |
| Length Type | Medium |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Neck Diameter (Decimal) | 0.01 |
| Neck Diameter (Metric) | 0.17 |
| Protruding Length (Decimal) | 0.67 |
| Protruding Length (Metric) | 17 |
| Shank Length (Metric) | 28 |
| Shank Length (Decimal) | 1.11 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 2.56 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 0 degrees |
| Base Item Number | #52356902 |
| Neck Diameter (Inch) | 0.01 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 0.16 |
| Shank Length (Inch) | 1.102 |
| Connection diameter machine side (inch) | 0.157 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 4 |
| Connection diameter machine side tolerance | h5 |
| Item Weight (lbs) | 0.038 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | -0.01 |
| Cutting Diameter (mm) | 200.00 µm |
| Item Length (Inches) | 2.56 |
| Head Length (Inch) | 0.069 |
| Shank Length (mm) | 28 |
| Cutting Diameter (Inch) | 0.008 |
