Ceratizit

5236104010

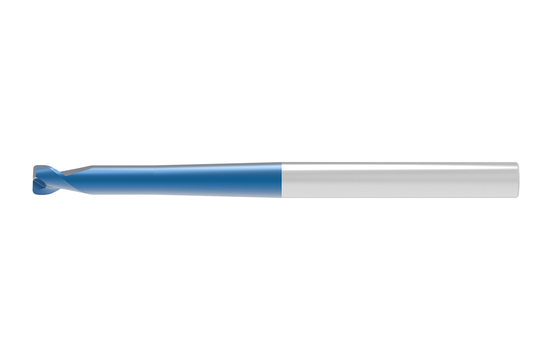

SOLID CARBIDE TORUS MILLING CUTTER

Specifications

Overall Length (Inch)3.15
Corner Radius (Inch)0.039
Corner Radius (Metric)1
Short DescriptionH.TO.4,0.30°.Z2.R1,0.HA.ML TI2000
Long DescriptionSOLID CARBIDE TORUS MILLING CUTTER H.TO.4,0.30°.Z2.R1,0.HA.ML TI2000
Neck Diameter (Metric)3.8
Neck Diameter (Inch)0.15
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)3
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Flute Helix HandLEFT
Flute Helix Angle30
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (mm)8 cm
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.078
Cutting DirectionRIGHT
Item Height (Inches)0.51
Protruding Length (Metric)44
Cutting Diameter (mm)4.00 mm
Peripheral Effective Cutting Edge Count2
Rake Angle Axial0
Item Length (Inches)4.33
CoatingTI2000
Head Length (Inch)0.63
Shank Length (mm)36
Cutting Diameter Tolerancee8
Head Length (Metric)16
Cutting Diameter (Inch)0.157
Corner Radius Tolerance (Metric)±0.01
