Ceratizit

52404080

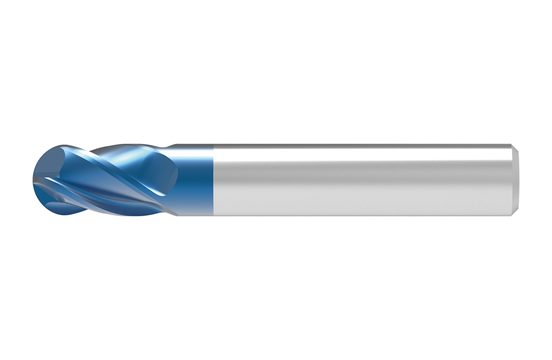

SOLID CARBIDE BALL NOSED MILLING CUTTER

Specifications

Coating/FinishTI2000
Diameter (Metric)8
Overall Length (Inch)2.33
Length Of Cut (Inch)0.48
Overall Length (Metric)59
Cutting DirectionRight
MaterialVHM
Length Of Cut (Metric)12
Diameter (Inch)0.32
Unit Of MeasureMetric
Connection Diameter (Decimal)0.32
Connection Diameter (Metric)8
Connection Diameter ToleranceH6
Connection TypeCYL
Diameter ToleranceF8
Length TypeShort
Height (Decimal)0.51
Length (Decimal)2.56
Width (Decimal)0.51
Protruding Length (Decimal)0.91
Protruding Length (Metric)23
Shank Length (Metric)36
Shank Length (Decimal)1.42
Flute Helix Angle30 degrees
Overall Length 2 (Decimal)2.56
Flute Helix HandLeft
Peripheral Effective Cutting Edge Count4
Rake Angle Axial0 degrees
Base Item Number#52404080
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)12
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.315
Item Width (Inches)0.51
Connection type machine sideCYL
Connection diameter machine side (mm)8
Connection diameter machine side toleranceH6
Base MaterialVHM
Item Weight (lbs)0.102
Item Height (Inches)0.51
Cutting Diameter (mm)8.00 mm
Item Length (Inches)2.56
Shank Length (mm)36
Cutting Diameter Tolerancef8
Cutting Diameter (Inch)0.315
