Ceratizit
5250616000

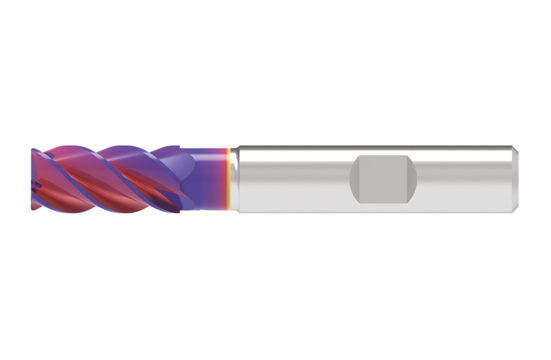

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.63 |
|---|---|
| Diameter (Metric) | 16 |
| Diameter (Inch) | 0.63 |
| Length Of Cut (Inch) | 1.42 |
| Material | VHM |
| Overall Length (Metric) | 92 |
| Coating/Finish | DPX52S |
| Overall Length 2 (Inch) | 4.13 |
| Cutting Direction | Right |
| Helix Angle | 40 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Corner Radius (Decimal) | 0.02 |
| Corner Radius (Metric) | 1 |
| Max. Cutting Depth (Metric) | 36 |
| Neck Diameter (Decimal) | 0.61 |
| Neck Diameter (Metric) | 15.5 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.66 |
| Head Length (Metric) | 42 |
| Length Type | Long |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 4.13 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Peripheral Effective Cutting Edge Count | 5 |
| Profile Radius (Decimal) | 0.04 |
| Profile Radius (Metric) | 1 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5250616000 |
| Flute Helix Angle | 40 |
| Neck Diameter (Inch) | 0.61 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Unit Of Measure | Imperial |
