Ceratizit
5250804005

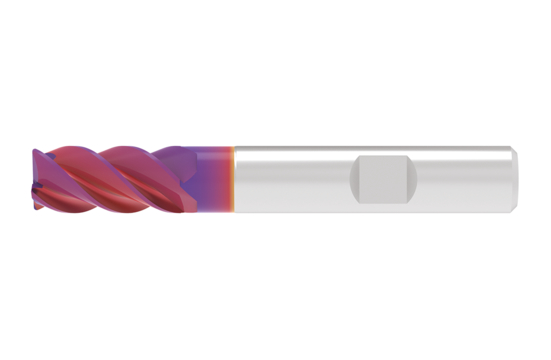

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 0.44 |
|---|---|
| Helix Angle | 40 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.16 |
| Corner Radius (Inch) | 0.02 |
| Overall Length (Inch) | 2.25 |
| Cutting Diameter (Metric) | 4 |
| Overall Length (Metric) | 57 |
| Coating/Finish | DPX52S |
| Corner Radius (Metric) | 1 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.02 Inch |
| Overall Length 2 (Inch) | 2.64 |
| Cutting Direction | Right |
| Connection Diameter (Decimal) | 0.24 |
| Connection Diameter (Metric) | 6 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Head Length (Decimal) | 0.56 |
| Head Length (Metric) | 14 |
| Length (Decimal) | 2.64 |
| Width (Decimal) | 0.51 |
| Height (Decimal) | 0.51 |
| Length Type | Long |
| Protruding Length (Decimal) | 0.83 |
| Protruding Length (Metric) | 21 |
| Shank Length (Decimal) | 1.42 |
| Shank Length (Metric) | 36 |
| Flute Helix Angle | 40 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 11 |
| Peripheral Effective Cutting Edge Count | 4 |
| Profile Radius (Decimal) | 0.04 |
| Profile Radius (Metric) | 1 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5250804005 |
| Maximum Depth Of Cut (Metric) | 11 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 11 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Profile Radius 3 (Metric) | 1 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 2.244 |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.056 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter (mm) | 4.00 mm |
| Item Length (Inches) | 2.64 |
| Head Length (Inch) | 0.551 |
| Shank Length (mm) | 36 |
