Ceratizit

5250806110

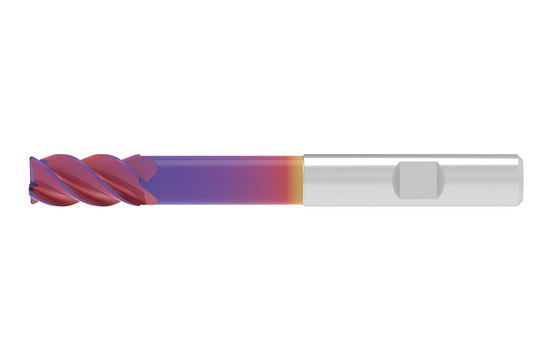

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Length Of Cut (Inch)0.52
Helix Angle40 degrees
MaterialVHM
Cutting Diameter (Inch)0.24
Corner Radius (Inch)0.04
Overall Length (Inch)2.76
Cutting Diameter (Metric)6
Overall Length (Metric)70
Coating/FinishDPX52S
Corner Radius (Metric)1
Unit Of MeasureImperial
Corner Radius0.04 Inch
Neck Diameter0.23 Inch
Overall Length 2 (Inch)3.27
Cutting DirectionRight
Neck Diameter (Metric)5.8
Connection Diameter (Decimal)0.24
Connection Diameter (Metric)6
Connection Diameter ToleranceH5
Connection TypeCYL
CoolantWithout IC
Cutting Diameter ToleranceE8
Head Length (Decimal)1.19
Head Length (Metric)30
Length (Decimal)3.27
Width (Decimal)0.51
Height (Decimal)0.51
Length TypeExtra Long
Protruding Length (Decimal)1.34
Protruding Length (Metric)34
Shank Length (Decimal)1.42
Shank Length (Metric)36
Flute Helix Angle40 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Metric)13
Peripheral Effective Cutting Edge Count4
Profile Radius (Decimal)0.04
Profile Radius (Metric)1
Rake Angle Axial10 degrees
Base Item Number#5250806110
Maximum Depth Of Cut (Metric)13
Neck Diameter (Inch)0.228
Product TypeIndustrial Supplies
Unit of MeasureImperial
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)13
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Profile Radius 3 (Metric)1
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)2.756
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.071
Item Height (Inches)0.51
Cutting Diameter (mm)6.00 mm
Item Length (Inches)3.27
Head Length (Inch)1.181
Shank Length (mm)36
