Ceratizit
5250812025

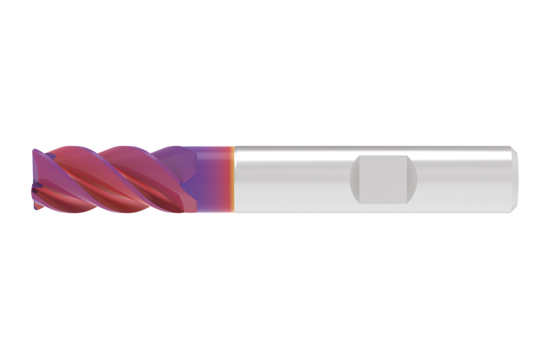

HPC CARBIDE END MILL WITH CORNER RADIUS
Specifications
| Length Of Cut (Inch) | 1.03 |
|---|---|
| Helix Angle | 40 degrees |
| Material | VHM |
| Cutting Diameter (Inch) | 0.48 |
| Corner Radius (Inch) | 0.1 |
| Overall Length (Inch) | 3.27 |
| Cutting Diameter (Metric) | 12 |
| Overall Length (Metric) | 83 |
| Coating/Finish | DPX52S |
| Corner Radius (Metric) | 3 |
| Unit Of Measure | Imperial |
| Corner Radius | 0.10 Inch |
| Overall Length 2 (Inch) | 3.54 |
| Cutting Direction | Right |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Length (Decimal) | 3.54 |
| Width (Decimal) | 0.71 |
| Height (Decimal) | 0.71 |
| Length Type | Long |
| Protruding Length (Decimal) | 1.5 |
| Protruding Length (Metric) | 380 |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Flute Helix Angle | 40 degrees |
| Flute Helix Hand | Left |
| Max. Depth Of Cut (Metric) | 26 |
| Peripheral Effective Cutting Edge Count | 4 |
| Profile Radius (Decimal) | 0.04 |
| Profile Radius (Metric) | 1 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #5250812025 |
| Maximum Depth Of Cut (Metric) | 26 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 26 |
| Shank Length (Inch) | 1.772 |
| Connection diameter machine side (inch) | 0.472 |
| Profile Radius 3 (Metric) | 1 |
| Item Width (Inches) | 0.71 |
| Connection type machine side | CYL |
| Overall Length (Decimal Inch) | 3.268 |
| Connection diameter machine side (mm) | 12 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.279 |
| Item Height (Inches) | 0.71 |
| Cutting Diameter (mm) | 1.20 cm |
| Item Length (Inches) | 3.54 |
| Shank Length (mm) | 45 |
