Ceratizit
52601100

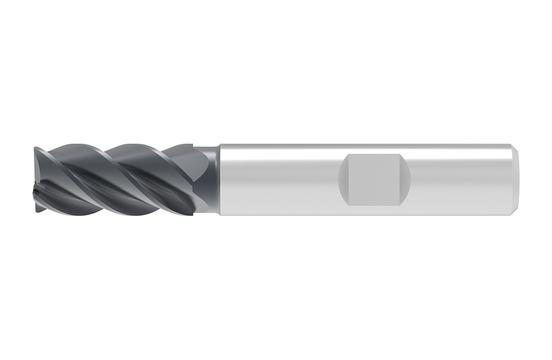

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.64 |
|---|---|
| Diameter (Metric) | 10 |
| Diameter (Inch) | 0.4 |
| Length Of Cut (Metric) | 15 |
| Material | VHM |
| Overall Length (Metric) | 67 |
| Coating/Finish | TI1200 |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Helix Angle | 35 - 38 degrees |
| Shank Length (Decimal) | 1.58 |
| Shank Length (Metric) | 40 |
| Max. Cutting Depth (Decimal) | 0.6 |
| Neck Diameter (Decimal) | 0.38 |
| Neck Diameter (Metric) | 9.5 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Length Type | Short |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.07 |
| Protruding Length (Metric) | 27 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.2 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #52601100 |
| Flute Helix Angle | 35_38 |
| Neck Diameter (Inch) | 0.38 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
