Ceratizit
52605200

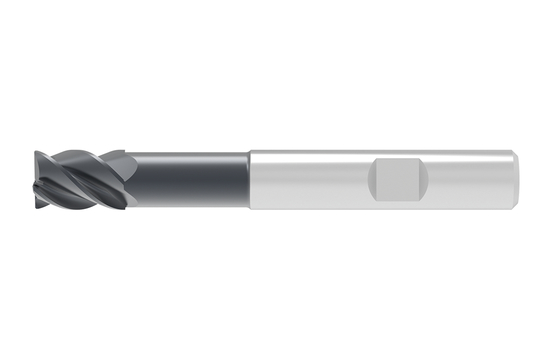

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 4.97 |
|---|---|
| Diameter (Metric) | 20 |
| Diameter (Inch) | 0.79 |
| Length Of Cut (Metric) | 30 |
| Material | VHM |
| Overall Length (Metric) | 126 |
| Coating/Finish | TI1200 |
| Overall Length 2 (Inch) | 6.06 |
| Cutting Direction | Right |
| Helix Angle | 35 - 38 degrees |
| Shank Length (Decimal) | 1.97 |
| Shank Length (Metric) | 50 |
| Max. Cutting Depth (Decimal) | 1.19 |
| Neck Diameter (Decimal) | 0.77 |
| Neck Diameter (Metric) | 19.5 |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Length Type | Extra Long |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 6.06 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 3 |
| Protruding Length (Metric) | 76 |
| Corner Chamfer Width (Decimal) | 0.02 |
| Corner Chamfer Width (Metric) | 0.3 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 7 degrees |
| Base Item Number | #52605200 |
| Flute Helix Angle | 35_38 |
| Neck Diameter (Inch) | 0.77 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
