Ceratizit

52607031

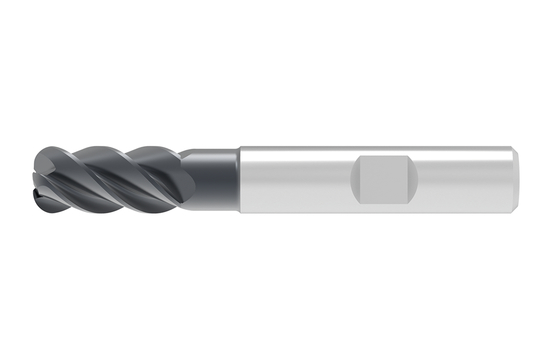

HPC CARBIDE END MILL WITH CORNER RADIUS

Specifications

Helix Angle35_38 degrees
MaterialVHM
Cutting Diameter (Inch)0.12
Corner Radius (Inch)0.02
Overall Length (Inch)2.29
Cutting Diameter (Metric)3
Length Of Cut (Metric)8
Overall Length (Metric)58
Coating/FinishTI1200
Corner Radius (Metric)1
Unit Of MeasureMetric
Corner Radius1 mm
Neck Diameter2.90 mm
Overall Length 2 (Inch)2.56
Cutting DirectionRight
Neck Diameter (Decimal)0.12
Neck Diameter (Metric)2.9
Connection Diameter (Decimal)0.24
Connection Diameter (Metric)6
Connection Diameter ToleranceH5
Connection TypeCYL
Cutting Diameter ToleranceF8
Head Length (Decimal)0.56
Head Length (Metric)14
Length (Decimal)2.56
Width (Decimal)0.51
Height (Decimal)0.51
Length TypeLong
Protruding Length (Decimal)0.87
Protruding Length (Metric)22
Shank Length (Decimal)1.42
Shank Length (Metric)36
Corner Radius Tolerance (Decimal)±0.01
Corner Radius Tolerance (Metric)±0.01
Flute Helix Angle35_38 degrees
Flute Helix HandLeft
Max. Depth Of Cut (Decimal)0.32
Peripheral Effective Cutting Edge Count4
Rake Angle Axial7 degrees
Base Item Number#52607031
Maximum Depth Of Cut (Inch)0.32
Neck Diameter (Inch)0.12
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineWNT PERFORMANCE
Depth of Cut Maximum (Metric)8
Shank Length (Inch)1.417
Connection diameter machine side (inch)0.236
Item Width (Inches)0.51
Connection type machine sideCYL
Overall Length (Decimal Inch)2.283
Connection diameter machine side (mm)6
Connection diameter machine side toleranceh5
Base MaterialVHM
Item Weight (lbs)0.055
Item Height (Inches)0.51
Cutting Diameter (mm)3.00 mm
Item Length (Inches)2.56
Head Length (Inch)0.551
Shank Length (mm)36
