Ceratizit
52609031

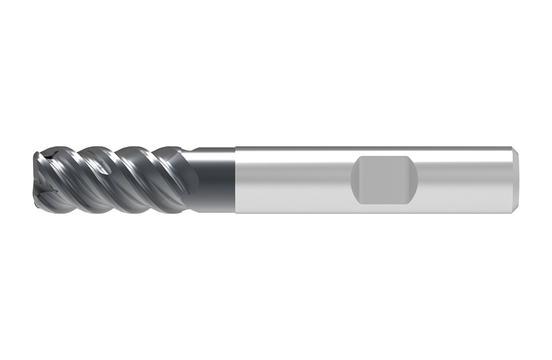

HFC/HPC SOLID CARB. TORUS MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.244 |
|---|---|
| Short Description | SCR.H-TO.3,0.45°.Z4.R0,4.HB.L.IK TI1200 |
| Long Description | HFC/HPC SOLID CARB. TORUS MILLING CUTTER SCR.H-TO.3,0.45°.Z4.R0,4.HB.L.IK TI1200 |
| Neck Diameter (Metric) | 2.9 |
| Neck Diameter (Inch) | 0.114 |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 3 |
| Shank Length (Inch) | 1.417 |
| Connection diameter machine side (inch) | 0.236 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 45 |
| Profile Radius 1 (Metric) | 0.4 |
| Coolant | IC CENTRAL |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (mm) | 5.7 cm |
| Connection diameter machine side (mm) | 6 |
| Connection diameter machine side tolerance | h5 |
| Base Material | VHM |
| Item Weight (lbs) | 0.053 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | -0.04 |
| Protruding Length (Metric) | 21 |
| Cutting Diameter (mm) | 3.00 mm |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 7 |
| Item Length (Inches) | 2.56 |
| Coating | TI1200 |
| Head Length (Inch) | 0.551 |
| Shank Length (mm) | 36 |
| Head Length (Metric) | 14 |
| Profile Radius 2 (Metric) | 1.5 |
