Ceratizit
52613117

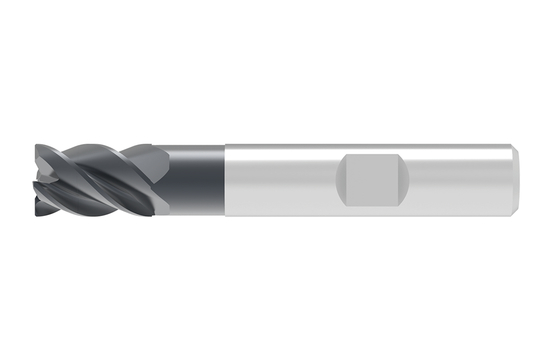

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 2.88 |
|---|---|
| Diameter (Metric) | 11.7 |
| Diameter (Inch) | 0.47 |
| Length Of Cut (Metric) | 16 |
| Material | VHM |
| Overall Length (Metric) | 73 |
| Coating/Finish | APA72S |
| Overall Length 2 (Inch) | 3.5 |
| Cutting Direction | Right |
| Helix Angle | 36 - 38 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Corner Radius (Decimal) | 0.02 |
| Corner Radius (Metric) | 1 |
| Max. Cutting Depth (Decimal) | 0.63 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Length Type | Short |
| Height (Decimal) | 0.71 |
| Length (Decimal) | 3.5 |
| Width (Decimal) | 0.71 |
| Protruding Length (Decimal) | 1.11 |
| Protruding Length (Metric) | 28 |
| Corner Radius Tolerance (Decimal) | ±0.01 |
| Corner Radius Tolerance (Metric) | ±0.03 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 8 degrees |
| Base Item Number | #52613117 |
| Flute Helix Angle | 36_38 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
