Ceratizit
52616175

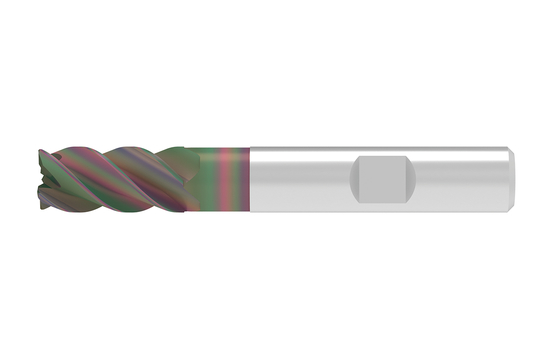

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.63 |
|---|---|
| Diameter (Metric) | 17.5 |
| Diameter (Inch) | 0.69 |
| Length Of Cut (Metric) | 32 |
| Material | VHM |
| Overall Length (Metric) | 92 |
| Coating/Finish | DLC |
| Overall Length 2 (Inch) | 4.45 |
| Cutting Direction | Right |
| Helix Angle | 36 degrees |
| Shank Length (Decimal) | 1.89 |
| Shank Length (Metric) | 48 |
| Corner Radius (Decimal) | 0.02 |
| Corner Radius (Metric) | 1 |
| Max. Cutting Depth (Decimal) | 1.26 |
| Neck Diameter (Decimal) | 0.69 |
| Neck Diameter (Metric) | 17.3 |
| Connection Diameter (Decimal) | 0.71 |
| Connection Diameter (Metric) | 18 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | F8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.66 |
| Head Length (Metric) | 42 |
| Length Type | Long |
| Height (Decimal) | 1.1 |
| Length (Decimal) | 4.45 |
| Width (Decimal) | 1.1 |
| Protruding Length (Decimal) | 1.74 |
| Protruding Length (Metric) | 44 |
| Corner Radius Tolerance (Decimal) | ±0.01 |
| Corner Radius Tolerance (Metric) | ±0.03 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 13 degrees |
| Base Item Number | #52616175 |
| Flute Helix Angle | 36 |
| Neck Diameter (Inch) | 0.69 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
