Ceratizit
52753163

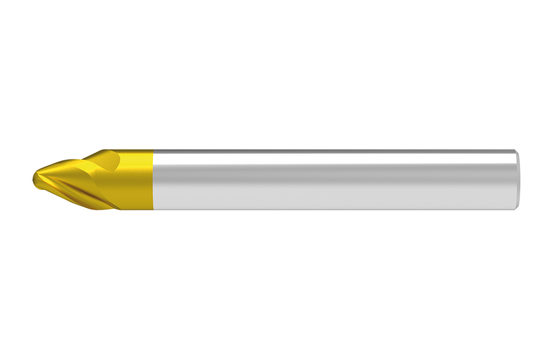

3D FINISH SOLID CARBIDE END MILL
Specifications
| Overall Length (Inch) | 4.252 |
|---|---|
| Coating | APB72S |
| Flute Helix Angle | 30 |
| Long Description | 3D FINISH SOLID CARBIDE END MILL N.3D-F.SC.16.30°.Z3.4.1500.8.HA.L APB72S |
| Peripheral Effective Cutting Edge Count | 3 |
| Rake Angle Axial | 0 |
| Short Description | N.3D-F.SC.16.30°.Z3.4.1500.8.HA.L APB72S |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 18.5 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 0.63 |
| Flute Helix Hand | RIGHT |
| Profile Radius 3 (Metric) | 8 |
| Profile Radius 1 (Metric) | 4 |
| Item Width (Inches) | 0.98 |
| Connection type machine side | CYL |
| Overall Length (mm) | 10.8 cm |
| Connection diameter machine side (mm) | 16 |
| Connection diameter machine side tolerance | H6 |
| Base Material | VHM |
| Item Weight (lbs) | 0.679 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.98 |
| Protruding Length (Metric) | 60 |
| Cutting Diameter (mm) | 1.60 cm |
| Item Length (Inches) | 5.24 |
| Profile Angle | 40 |
| Shank Length (mm) | 48 |
| Profile Radius 2 (Metric) | 1500 |
| Cutting Diameter (Inch) | 0.63 |
