Ceratizit
52784142

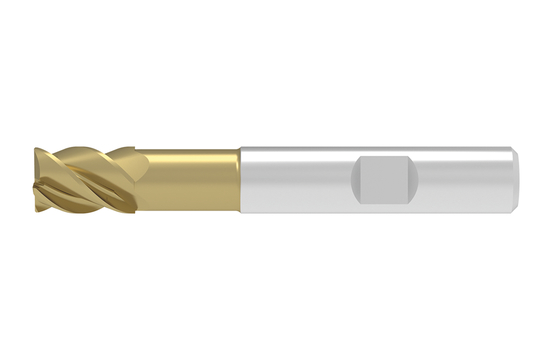

HPC SOLID CARBIDE END MILLING CUTTER
Specifications
| Overall Length (Inch) | 3.27 |
|---|---|
| Diameter (Metric) | 14 |
| Diameter (Inch) | 0.56 |
| Length Of Cut (Metric) | 21 |
| Material | VHM |
| Overall Length (Metric) | 83 |
| Coating/Finish | TI1500 |
| Overall Length 2 (Inch) | 4.06 |
| Cutting Direction | Right |
| Helix Angle | 38 - 40 degrees |
| Shank Length (Decimal) | 1.78 |
| Shank Length (Metric) | 45 |
| Max. Cutting Depth (Decimal) | 0.83 |
| Neck Diameter (Decimal) | 0.54 |
| Neck Diameter (Metric) | 13.5 |
| Connection Diameter (Decimal) | 0.56 |
| Connection Diameter (Metric) | 14 |
| Connection Diameter Tolerance | H6 |
| Connection Type | CYL |
| Coolant | Without IC |
| Cutting Diameter Tolerance | E8 |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 1.38 |
| Head Length (Metric) | 35 |
| Length Type | Short |
| Height (Decimal) | 0.98 |
| Length (Decimal) | 4.06 |
| Width (Decimal) | 0.98 |
| Protruding Length (Decimal) | 1.5 |
| Protruding Length (Metric) | 380 |
| Corner Chamfer Width (Decimal) | 0.01 |
| Corner Chamfer Width (Metric) | 0.2 |
| Peripheral Effective Cutting Edge Count | 4 |
| Rake Angle Axial | 10 degrees |
| Base Item Number | #52784142 |
| Flute Helix Angle | 38_40 |
| Neck Diameter (Inch) | 0.54 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
