Ceratizit
52802152

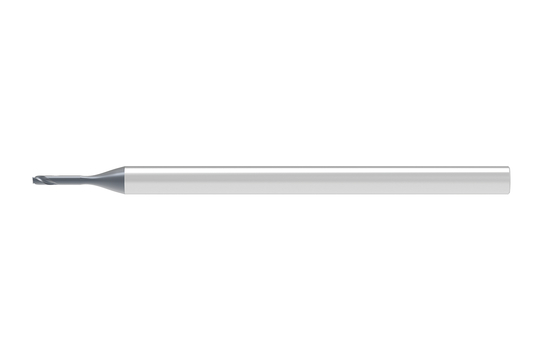

SOLID CARBIDE MICRO END MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.7 |
|---|---|
| Diameter (Metric) | 1.5 |
| Diameter (Inch) | 0.06 |
| Length Of Cut (Metric) | 1.5 |
| Overall Length (Metric) | 43 |
| Coating/Finish | DPA72S |
| Overall Length 2 (Inch) | 2.56 |
| Cutting Direction | Right |
| Helix Angle | 30 degrees |
| Shank Length (Decimal) | 1.45 |
| Shank Length (Metric) | 36.8 |
| Max. Cutting Depth (Decimal) | 0.06 |
| Neck Diameter (Decimal) | 0.05 |
| Neck Diameter (Metric) | 1.2 |
| Connection Diameter (Decimal) | 0.12 |
| Connection Diameter (Metric) | 3 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Flute Helix Hand | Left |
| Head Length (Decimal) | 0.13 |
| Head Length (Metric) | 3.3 |
| Length Type | Long |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Protruding Length (Decimal) | 0.25 |
| Protruding Length (Metric) | 6.2 |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 11 degrees |
| Base Item Number | #52802152 |
| Flute Helix Angle | 30 |
| Neck Diameter (Inch) | 0.05 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
