Ceratizit
52804051

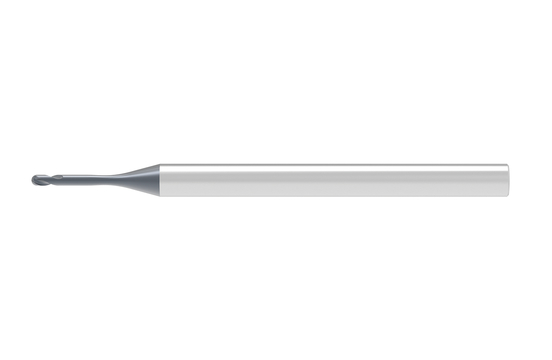

SOLID CARBIDE MICRO BALL NOSED CUTTER
Specifications
| Coating/Finish | DPA72S |
|---|---|
| Diameter (Metric) | 0.5 |
| Overall Length (Inch) | 1.5 |
| Length Of Cut (Inch) | 0.02 |
| Overall Length (Metric) | 38 |
| Cutting Direction | Right |
| Length Of Cut (Metric) | 0.3 |
| Diameter (Inch) | 0.02 |
| Unit Of Measure | Metric |
| Connection Diameter (Decimal) | 0.12 |
| Connection Diameter (Metric) | 3 |
| Connection Diameter Tolerance | H5 |
| Connection Type | CYL |
| Diameter Tolerance (Decimal) | ±0.01 |
| Diameter Tolerance (Metric) | ±0.01 |
| Head Length (Decimal) | 0.05 |
| Head Length (Metric) | 1.1 |
| Length Type | Short |
| Height (Decimal) | 0.51 |
| Length (Decimal) | 2.56 |
| Width (Decimal) | 0.51 |
| Neck Diameter (Decimal) | 0.02 |
| Neck Diameter (Metric) | 0.4 |
| Protruding Length (Decimal) | 0.24 |
| Protruding Length (Metric) | 5.9 |
| Shank Length (Metric) | 32.1 |
| Shank Length (Decimal) | 1.27 |
| Flute Helix Angle | 30 degrees |
| Overall Length 2 (Decimal) | 2.56 |
| Flute Helix Hand | Left |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 6 degrees |
| Base Item Number | #52804051 |
| Neck Diameter (Inch) | 0.02 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 0.3 |
| Shank Length (Inch) | 1.264 |
| Connection diameter machine side (inch) | 0.118 |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 3 |
| Connection diameter machine side tolerance | h5 |
| Item Weight (lbs) | 0.029 |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | ±0.01 |
| Cutting Diameter (mm) | 500.00 µm |
| Item Length (Inches) | 2.56 |
| Head Length (Inch) | 0.043 |
| Shank Length (mm) | 32.1 |
| Cutting Diameter (Inch) | 0.02 |
