Ceratizit
52806157

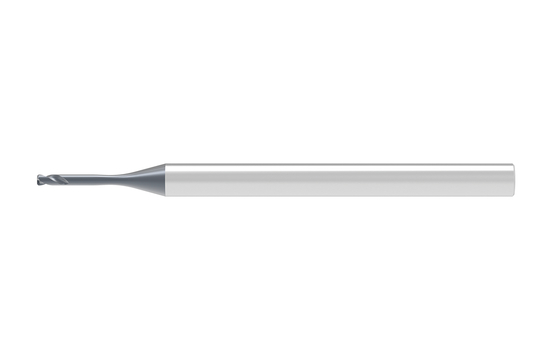

SOLID CARBIDE MICRO TORUS MILLING CUTTER
Specifications
| Overall Length (Inch) | 1.693 |
|---|---|
| Corner Radius (Inch) | 0.012 |
| Corner Radius (Metric) | 0.3 |
| Short Description | N.TO.1,5.30°.Z2.R0,3.HA.K15 DPA72S |
| Long Description | SOLID CARBIDE MICRO TORUS MILLING CUTTER N.TO.1,5.30°.Z2.R0,3.HA.K15 DPA72S |
| Neck Diameter (Metric) | 1.2 |
| Neck Diameter (Inch) | 0.047 |
| Product Line | WNT PERFORMANCE |
| Depth of Cut Maximum (Metric) | 1.5 |
| Shank Length (Inch) | 0.976 |
| Connection diameter machine side (inch) | 0.157 |
| Flute Helix Hand | LEFT |
| Flute Helix Angle | 30 |
| Coolant | WITHOUT IC |
| Item Width (Inches) | 0.51 |
| Connection type machine side | CYL |
| Overall Length (mm) | 4.3 cm |
| Connection diameter machine side (mm) | 4 |
| Connection diameter machine side tolerance | h5 |
| Item Weight (lbs) | 0.086 |
| Cutting Direction | RIGHT |
| Item Height (Inches) | 0.51 |
| Cutting Diameter Tolerance (Metric) | ±0.01 |
| Protruding Length (Metric) | 18.2 |
| Cutting Diameter (mm) | 1.50 mm |
| Peripheral Effective Cutting Edge Count | 2 |
| Rake Angle Axial | 12 |
| Item Length (Inches) | 2.56 |
| Coating | DPA72S |
| Head Length (Inch) | 0.591 |
| Shank Length (mm) | 24.8 |
| Head Length (Metric) | 15 |
| Cutting Diameter (Inch) | 0.059 |
| Corner Radius Tolerance (Metric) | ±0.005 |
